Ø 6 mm x 1 m | Silicone E-Glass Fire Sleeve - Black

Heat-Resistant Silicone Insulation Sleeve Ø6 mm – Black – 1 Meter

Quick Summary:

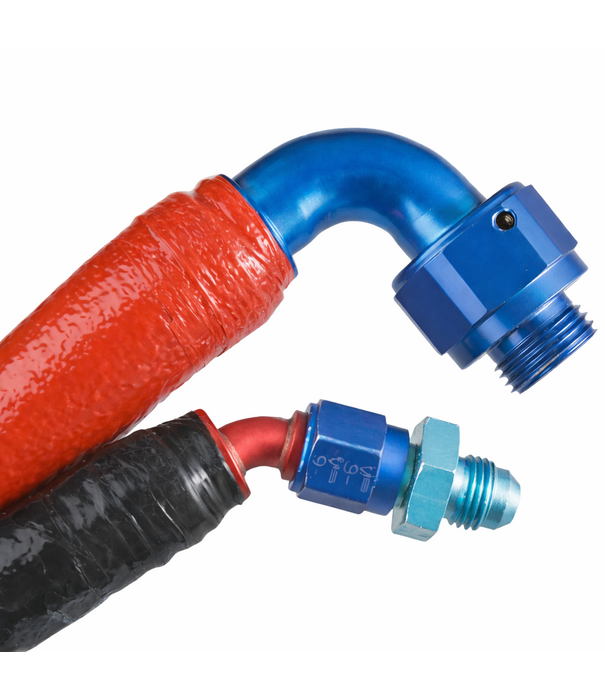

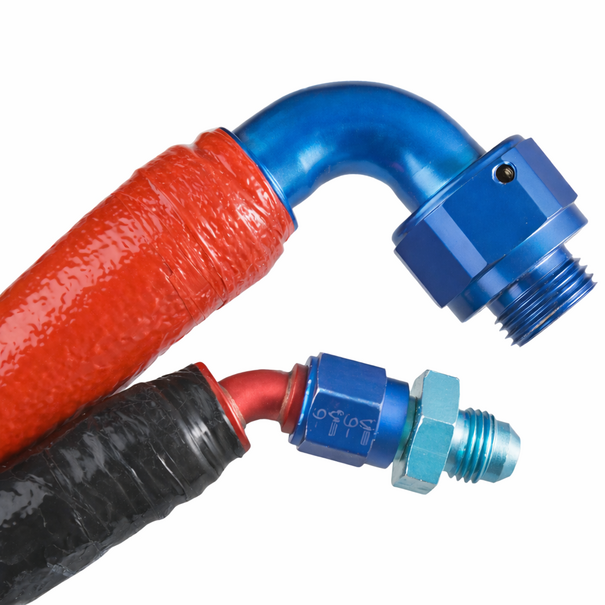

This premium insulation sleeve combines a braided fiberglass structure with a thick iron oxide silicone coating. Designed to protect cables, hoses, and lines from extreme temperatures and mechanical stress in demanding environments.

Product Specifications

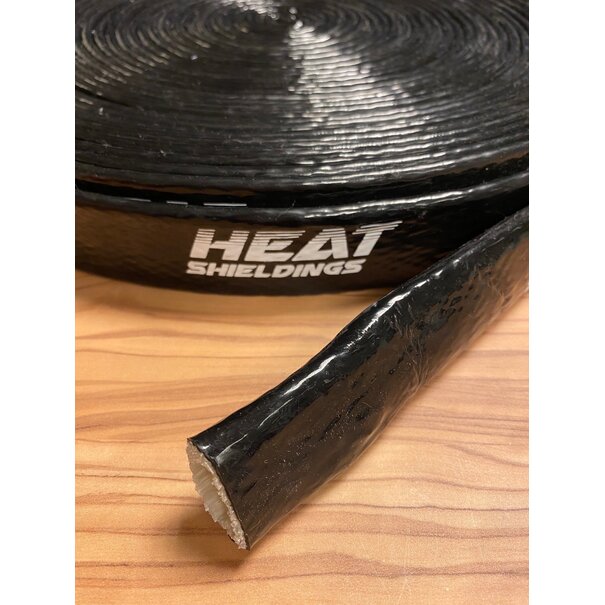

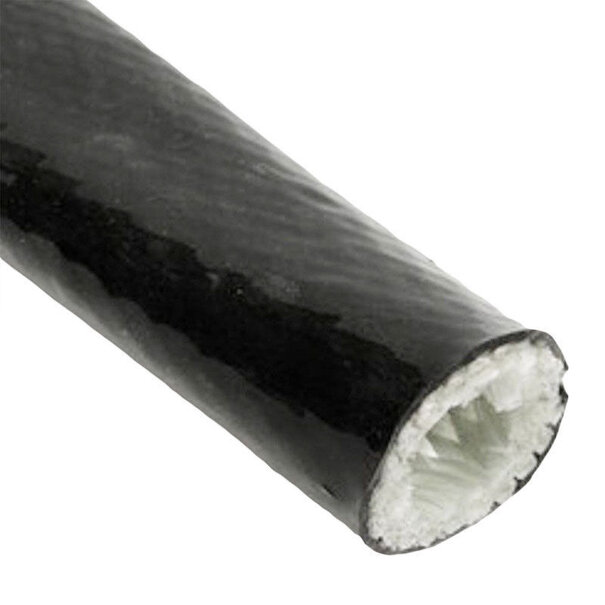

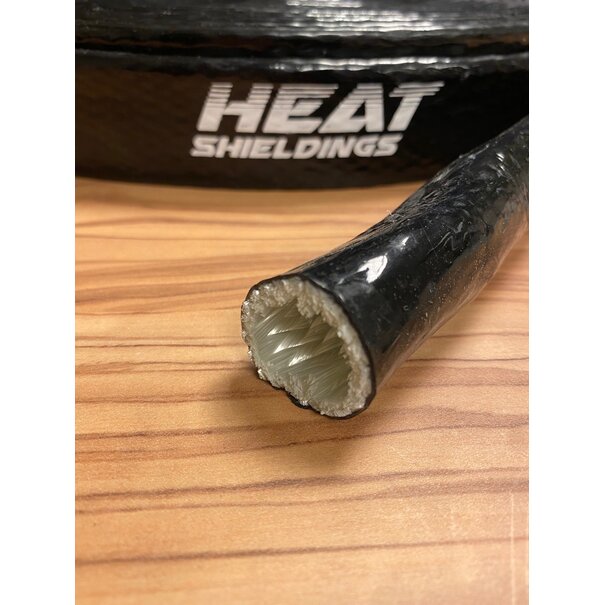

• Material: Braided fiberglass with iron oxide silicone coating

• Inner diameter: 6 mm

• Wall thickness: 3 mm

• Length: 1 meter

• Color: Black

• Max continuous temperature: 260 °C

• Max peak temperature (short-term): up to 1200 °C (e.g., weld splatter)

• Thermal conductivity (λ-value): 0.044 W/m·K

• Dielectric strength: up to 10 kV

• Self-adhesive: No

Key Benefits

• Excellent heat resistance: Provides reliable protection from high temperatures and weld splatter.

• Durable material: Braided fiberglass ensures mechanical strength and flexibility.

• Electrical insulation: Silicone coating offers high dielectric strength.

• Versatile use: Suitable for industrial and automotive environments.

Applications

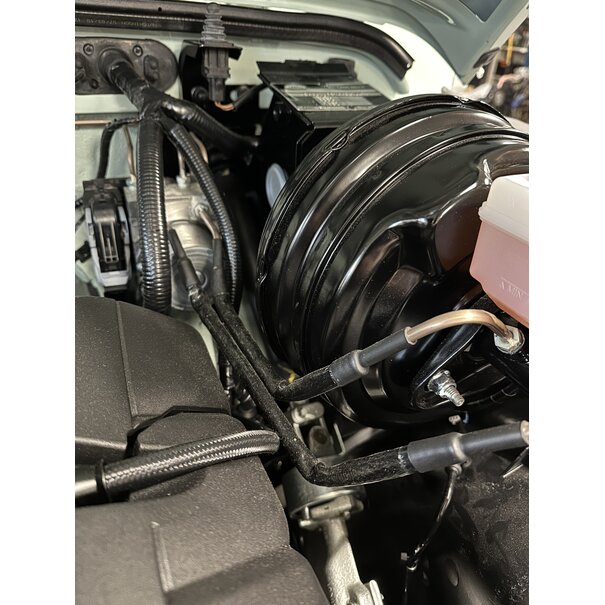

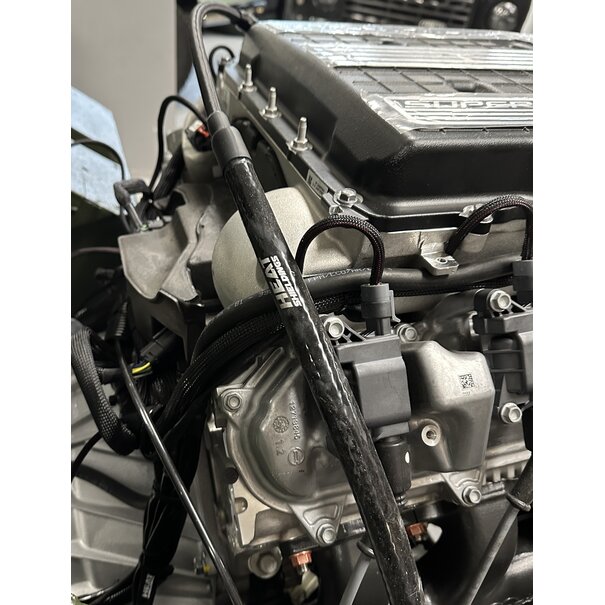

• Automotive: Protects cables and hoses in engine bays

• Industrial machinery: Insulates pipes and wires in production settings

• Aerospace: Shields wiring from high temperatures

• Marine: Insulates hoses and cables in engine compartments

• Commercial kitchens: Protects wiring and lines near heat sources

Installation Instructions

• Preparation: Ensure the surface is free from sharp edges and debris.

• Placement: Slide the sleeve over the cable or hose to be protected.

• Securing: Use appropriate fasteners if needed.

• Check: Ensure the sleeve is not under tension and has a slight slack.

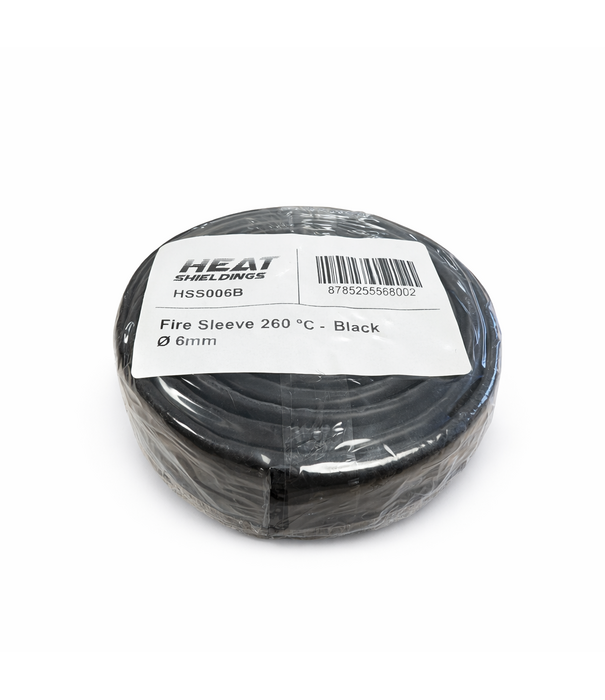

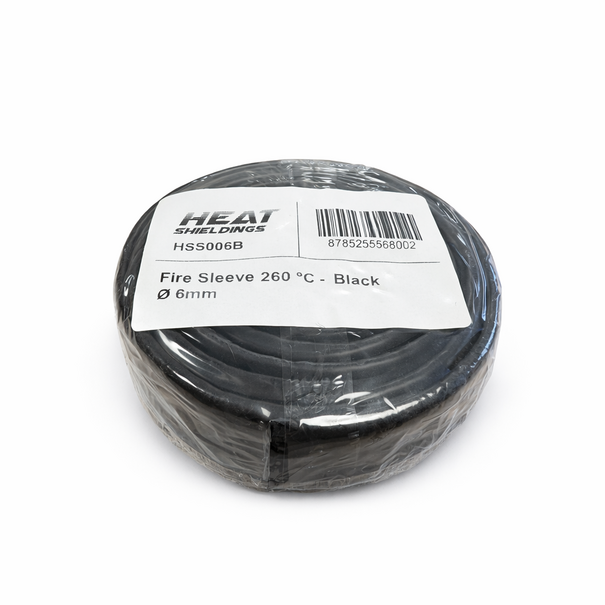

Packaging

• Contents: 1 meter of insulation sleeve with 6 mm inner diameter

• Availability: Other diameters and lengths available on request

Customer Support

For questions or special requirements regarding this heat-resistant sleeve, our customer service team is here to help.
