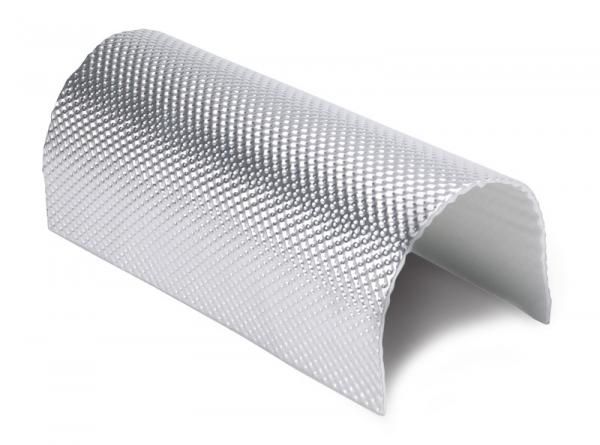

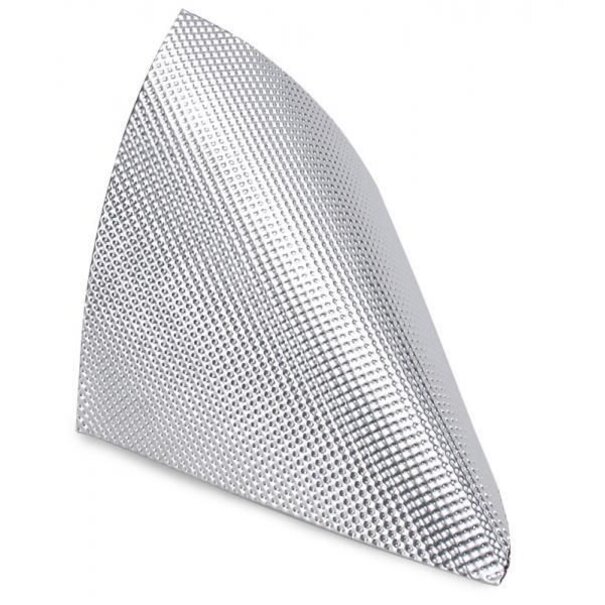

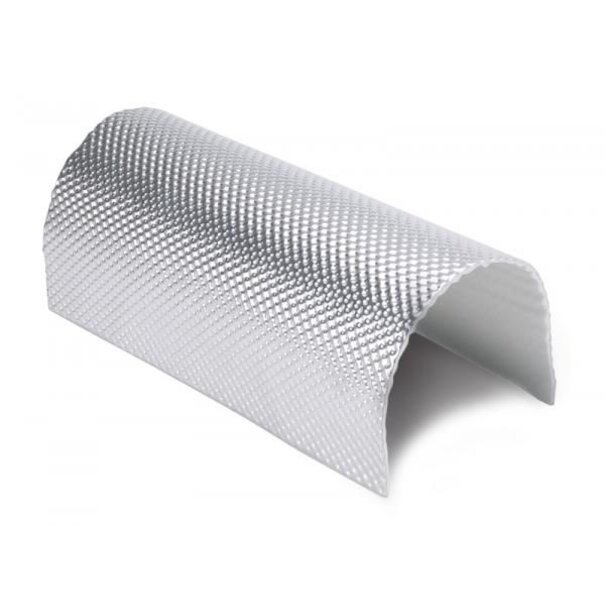

Floor & Tunnel Shield II™ solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics.
Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.

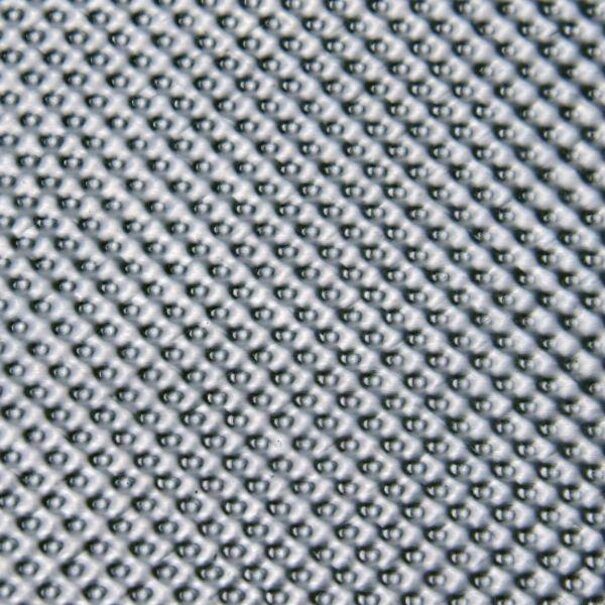

Constructed with an embossed 0.25mm aluminum face bonded to 3mm composite glass-fiber core, Floor & Tunnel Shield II withstands up to 950°C. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 4mm thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound.

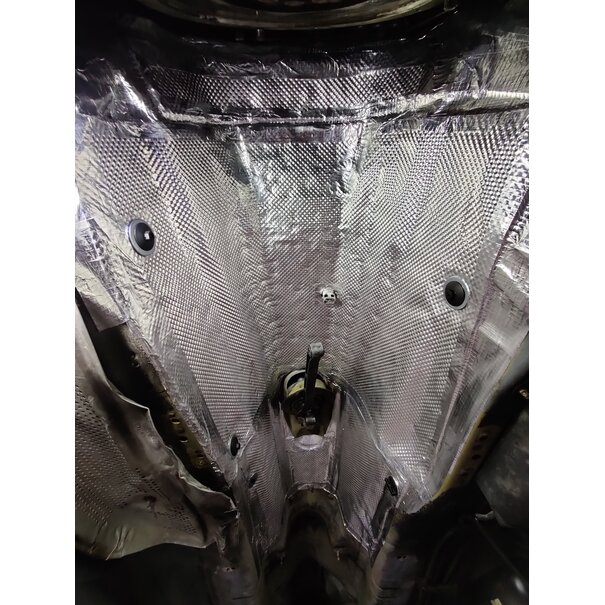

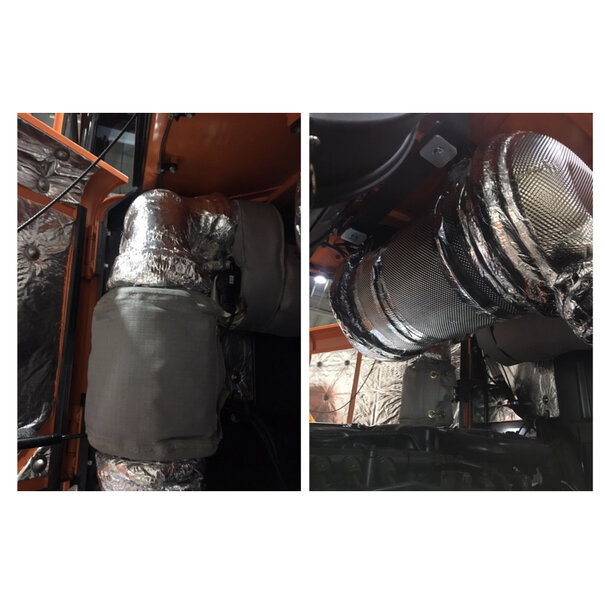

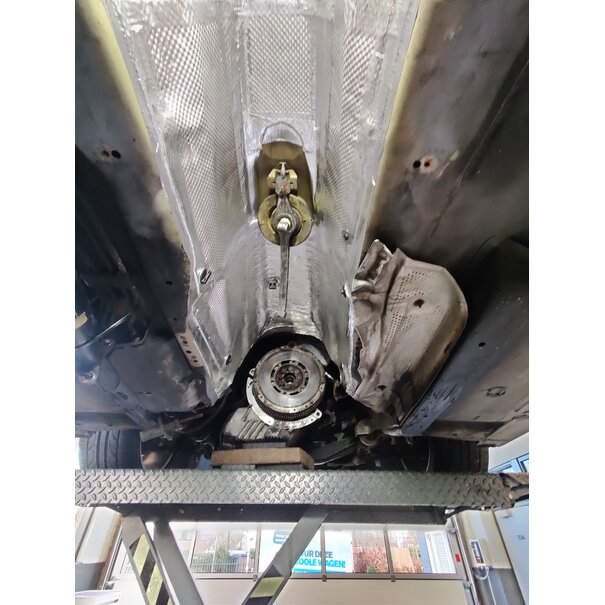

Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations - anywhere to reflect damaging heat. This version of Floor and Tunnel II does not include the adhesive backing the Original Floor and Tunnel Shield II has.
*DO NOT apply directly to exhaust components.
Heat Resistance: 950 °C (radiant heat on the aluminum side)
Heat Resistance: 375 °C (direct heat on the glassfiber side)
SDS Sheet: SDS Floor-and-Tunnel-Shield-II.pdf
|Max. direct heat | °C||375|
|Max. Radiant Heat | °C||950|
|Heat conductivity coefficient (λ value) | W/(mK)||0.044|
|Thickness | mm||5|
|Length | cm||106|
|Width | cm||61|
