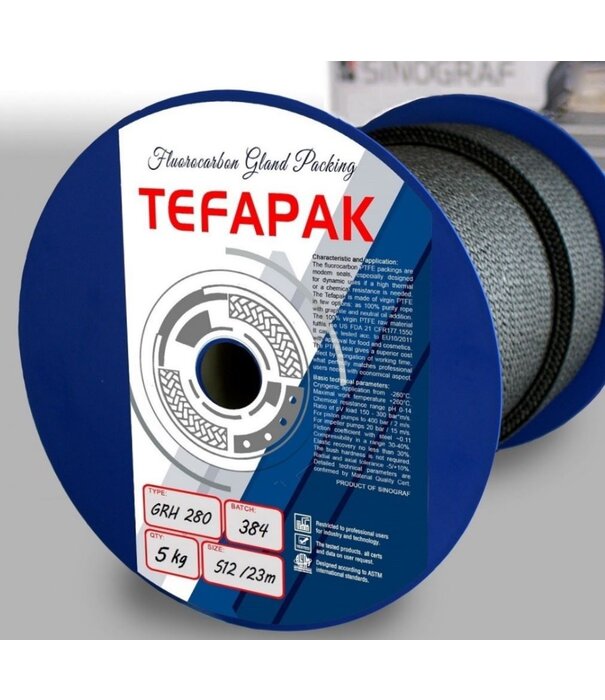

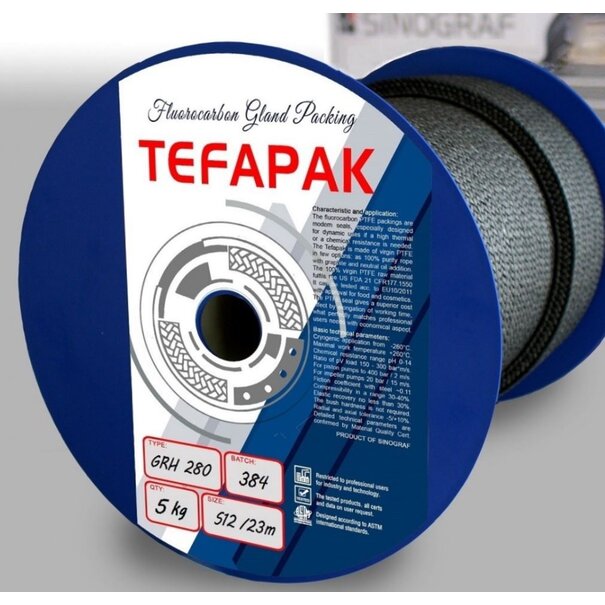

Tefapak GRH 280 Gland Packing

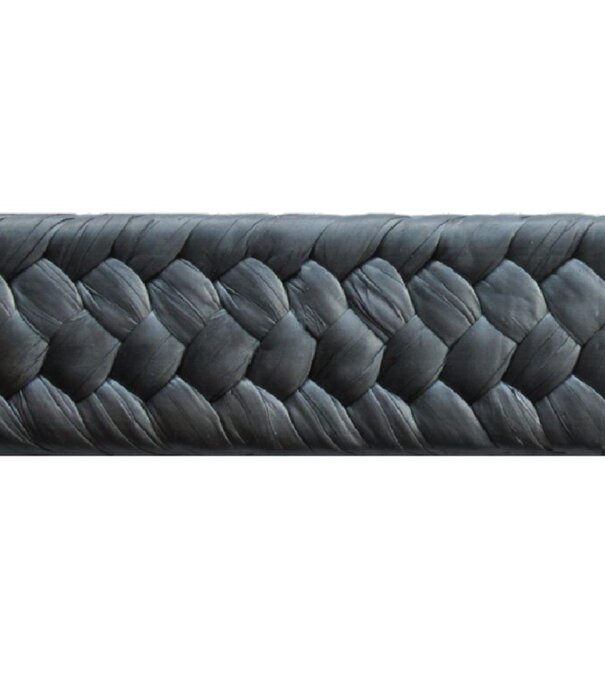

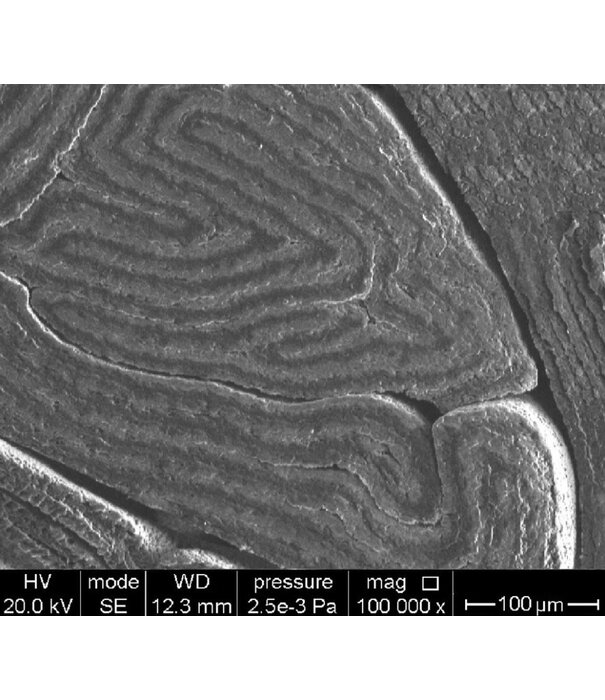

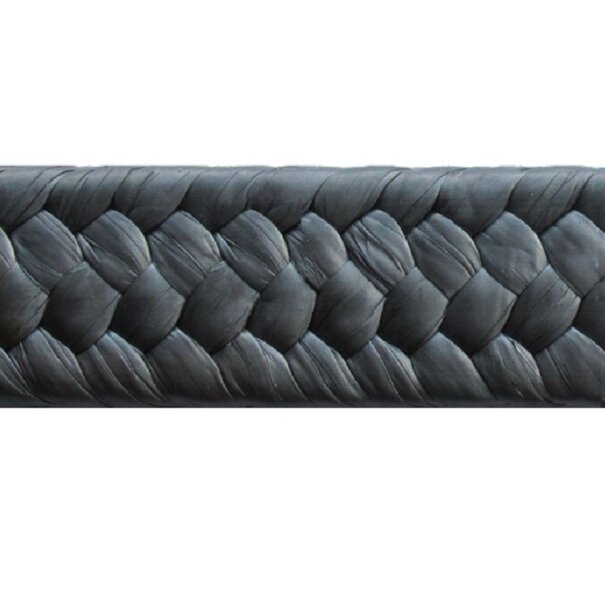

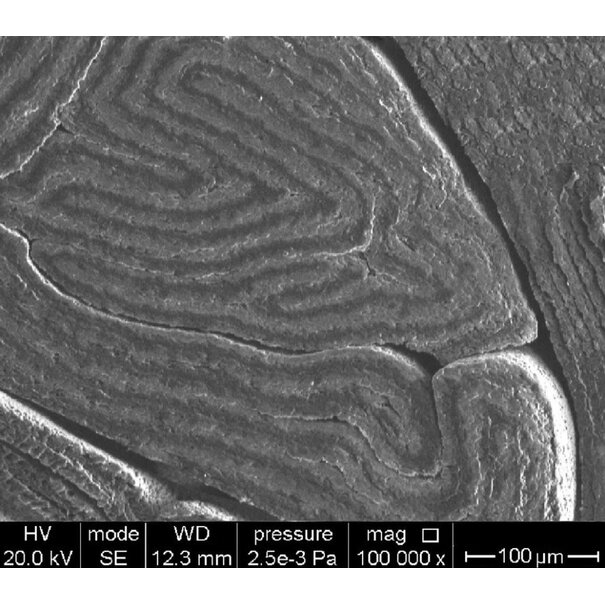

Packing made of thin strands PTFE foil incorporated with graphite. The GRH packing has 40% higher graphite content and at the same time higher strength compared to common PTFE graphited seals. The high performance of GRH packing is the result of a composite structure, that is clearly seen on the image from the SEM electron microscope. The structure of this packing consists of thin layers of colloidal graphite, at the level of 20 µm, enclosed in a PTFE matrix.

Technical properties

• Material: PTFE foil with graphite
• Temperature range: -200°C to 260°C
• Pressure resistance:
  Pumps: max. 20 bar
  Valves: max. 400 bar
  Rotary applications: max. 200 bar
• pH range: 0 – 14 pH
• Speed:
  Pumps: 25 m/s
  Valves: 3 m/s
  Rotary applications: 2 m/s
• Maximum load (pV): max. pV ~ 300 bar·m/s
• Average density: ~1.5 g/cc
• Min. shaft/bush hardness: ~30 HRC
• Available in square profiles from S6 to S25 mm (with a tolerance of ±10%)
