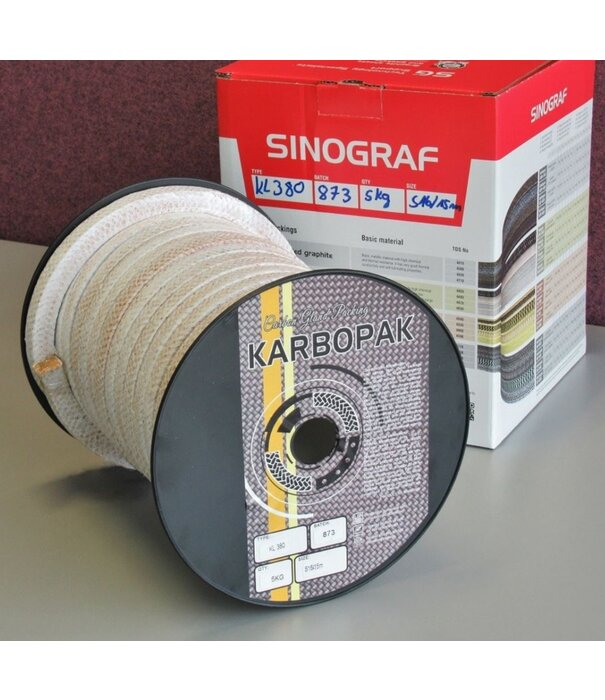

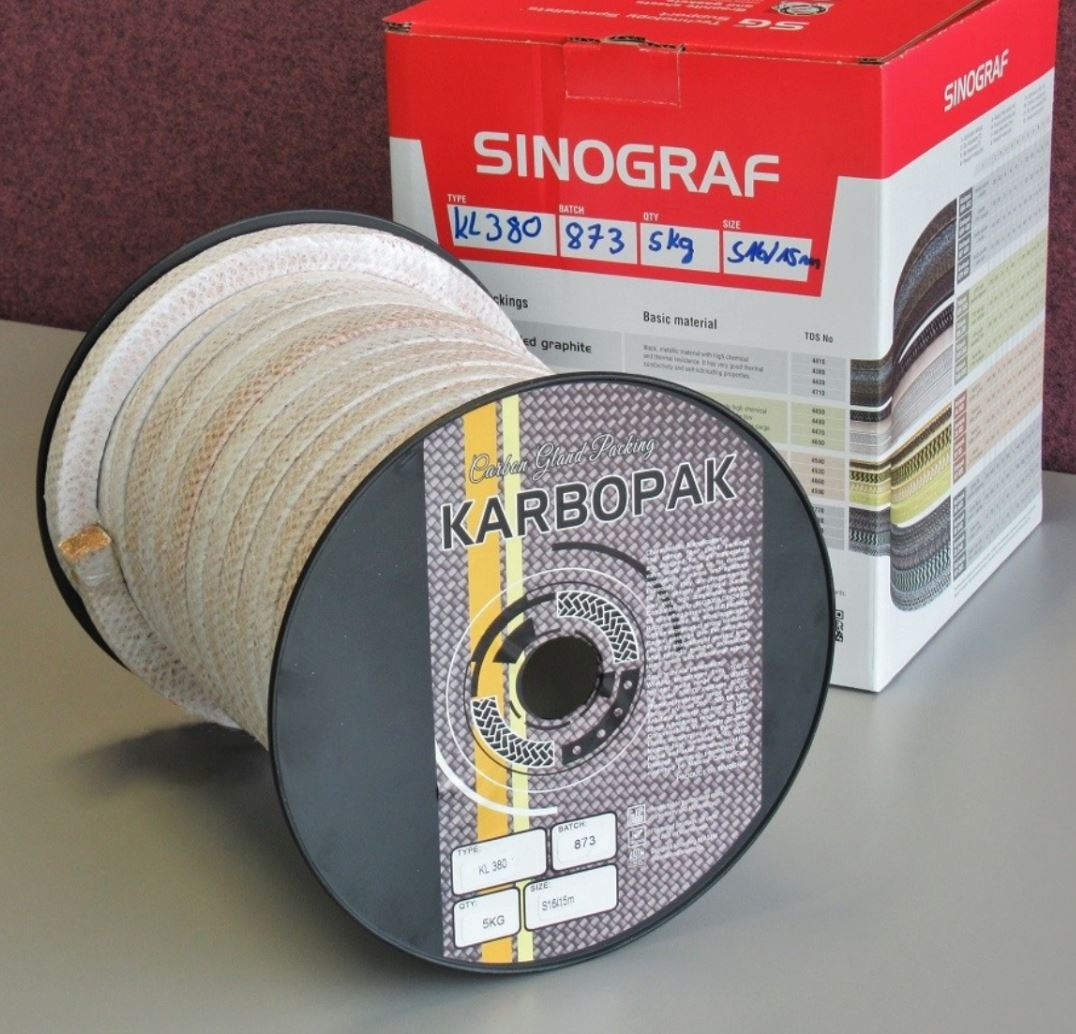

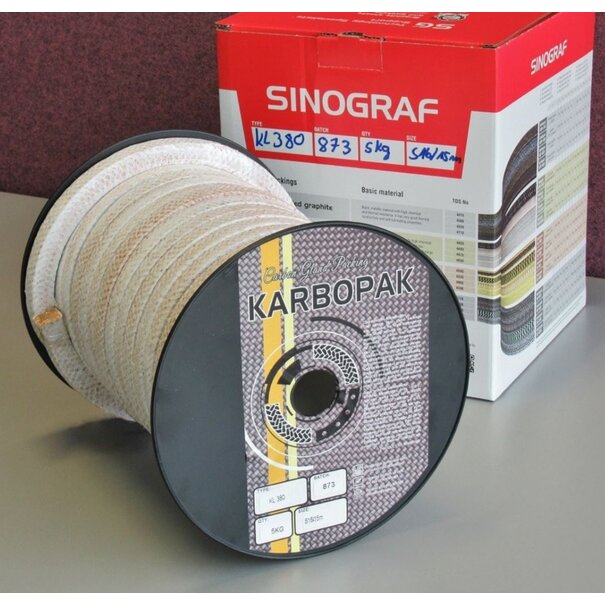

Karbopak KL 380 Gland Packing

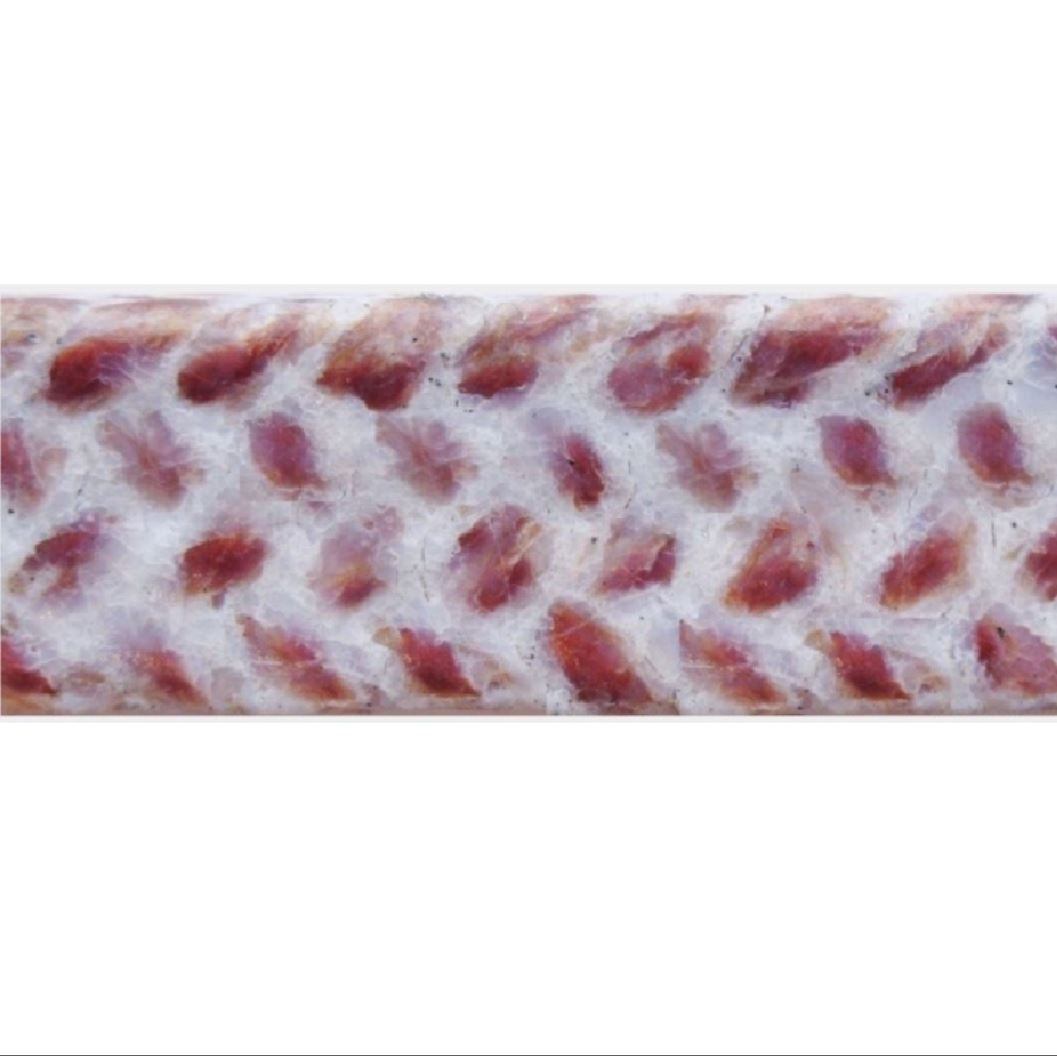

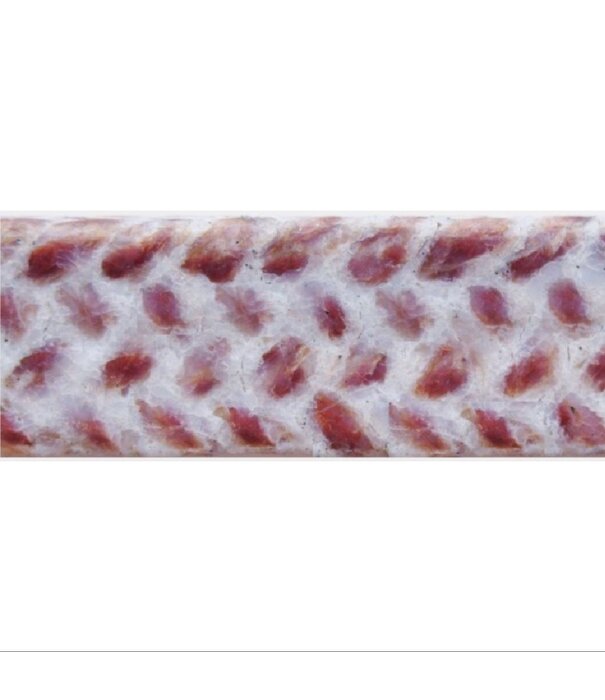

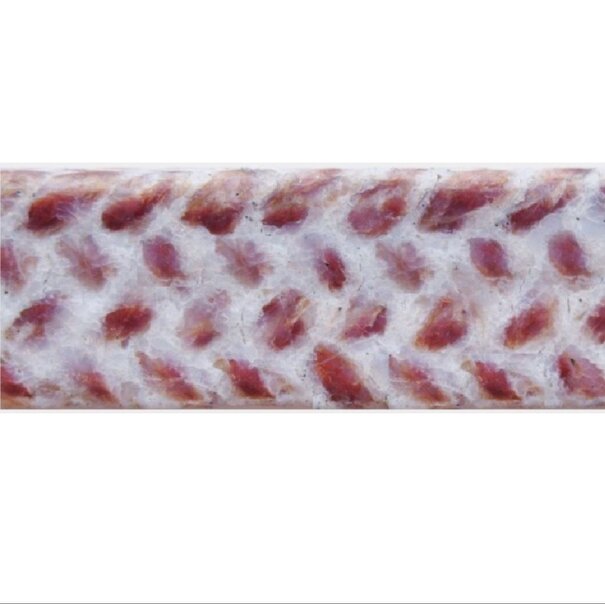

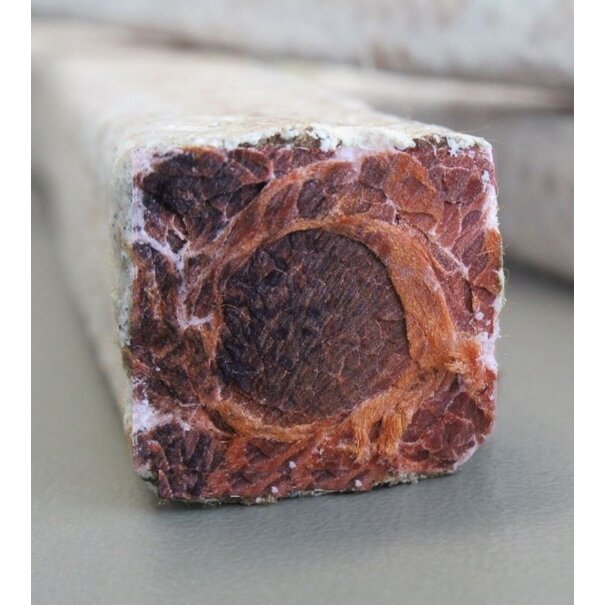

The packing based on phenoplasts is braided from high-performance synthetic fiber with a high content of carbon also named Kynol, Novoloid or phenolic fiber. The KL 380 packing is braided in square profiles with various sizes, which are impregnated with PTFE dispersion to improve friction and mechanical properties.

Technical properties

• Material: Phenolic fiber (Kynol/Novoloid) impregnated with PTFE
• Temperature range: -40°C to 200°C
• Pressure resistance:
  Pumps: max. 40 bar
  Valves: max. 200 bar
  Rotary applications: max. 200 bar
• pH range: 2 – 13 pH
• Speed:
  Pumps: 20 m/s
  Valves: 2 m/s
  Rotary applications: 2 m/s
• Maximum load (pV): max. pV ~ 400 bar·m/s
• Average density: ~1.2 g/cc
• Min. shaft/bush hardness: ~30 HRC

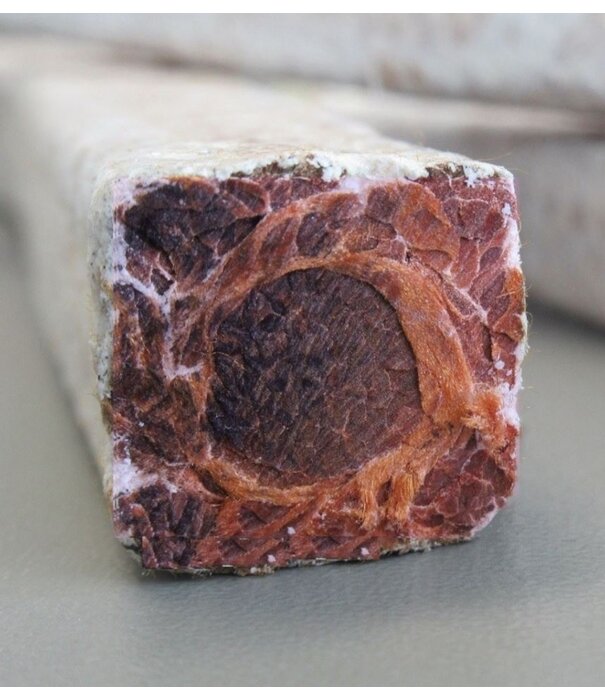

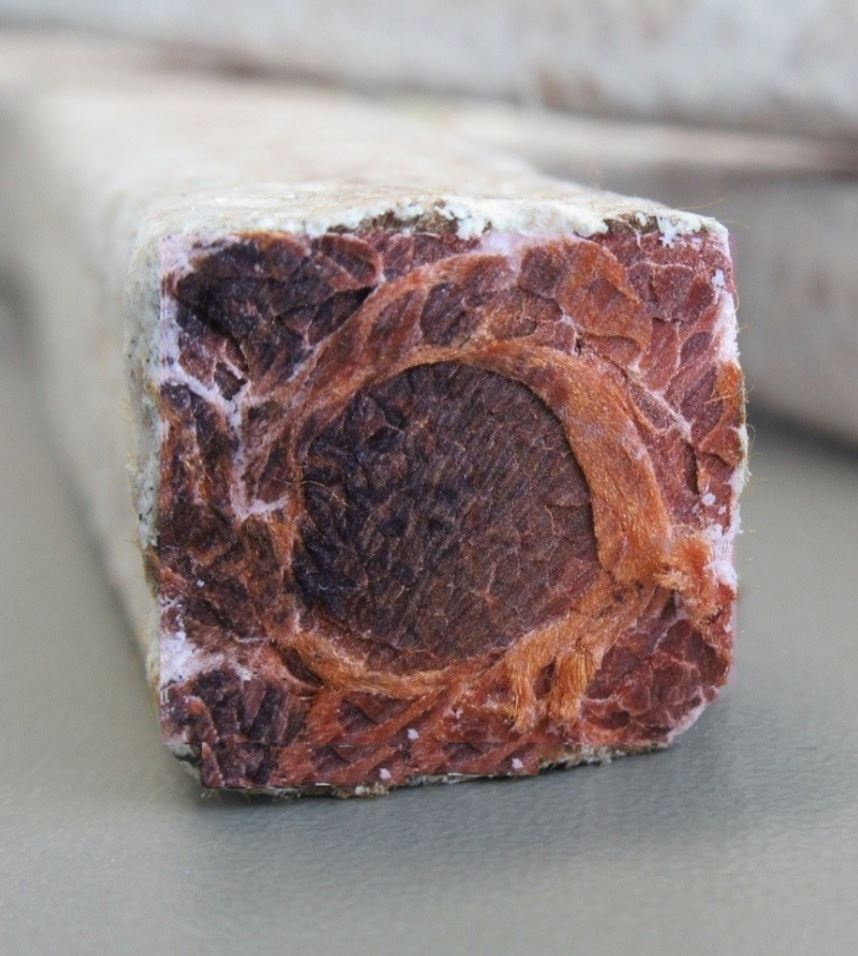

• Available in square profiles from S6 to S25 mm (with a tolerance of -5/+10%)
