1.2 m² | Aquafon 5GF | 27 mm | Flexible Sound and Fire-Resistant Board - Set of 2 boards including mounting materials

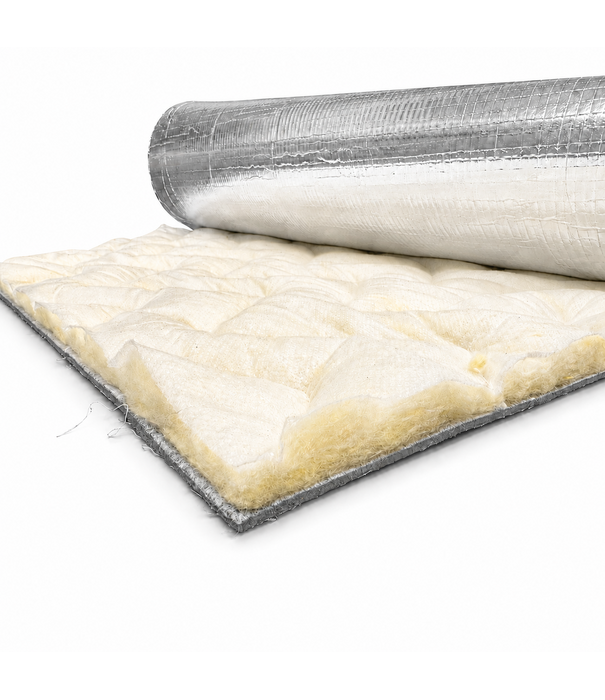

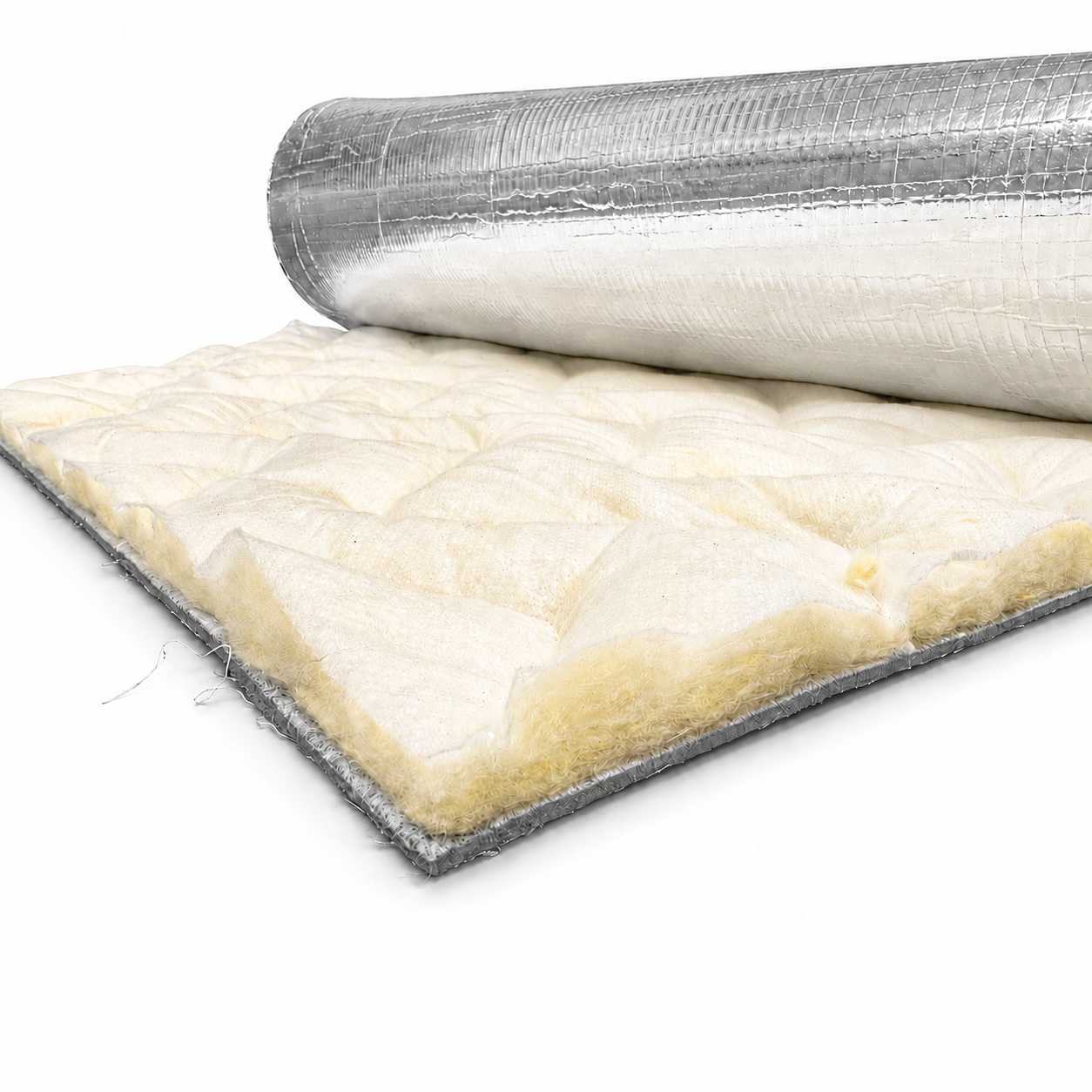

Siderise Aquafon 5GF insulation board kit 25 mm is a high performance acoustic solution for engine rooms, technical spaces and industrial motor rooms. The system is suitable for recreational craft up to 24 metres and is also widely used in industrial engine rooms and generator enclosures. This flexible acoustic barrier is designed to effectively reduce engine noise transmission and improve comfort and safety in adjacent areas. Thanks to its multilayer composite construction with a reinforced aluminium facing, Aquafon combines excellent sound insulation with high fire performance and resistance to moisture, oil and fuel.

Product Specifications

● Product name Siderise Aquafon 5GF
● Thickness 27 mm nominal
● Board size 1000 x 600 mm
● Colour Silver aluminium finish
● Surface mass approximately 6 kg per m²

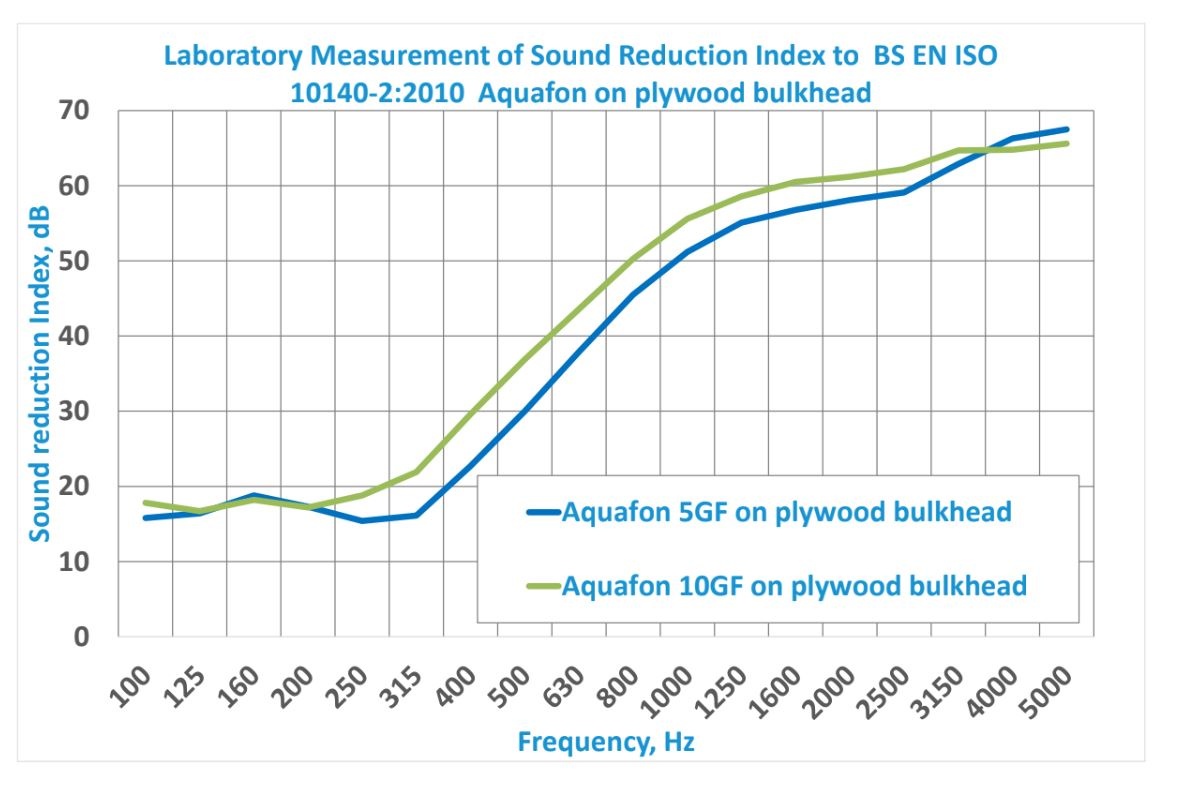

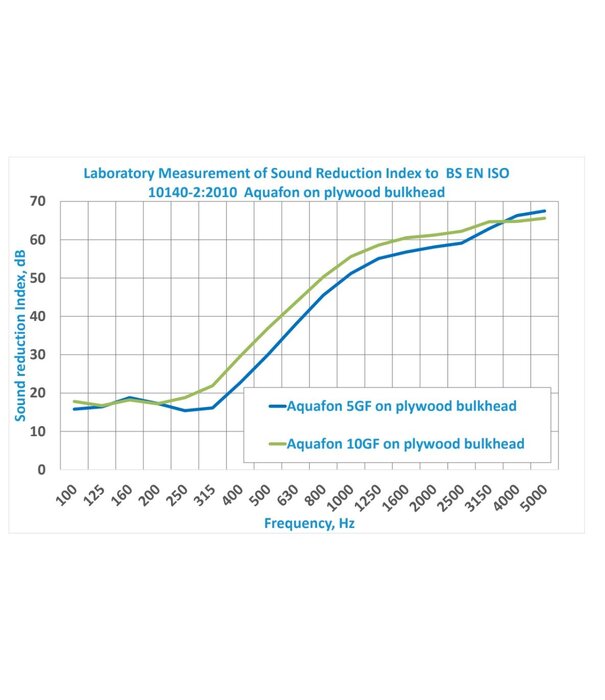

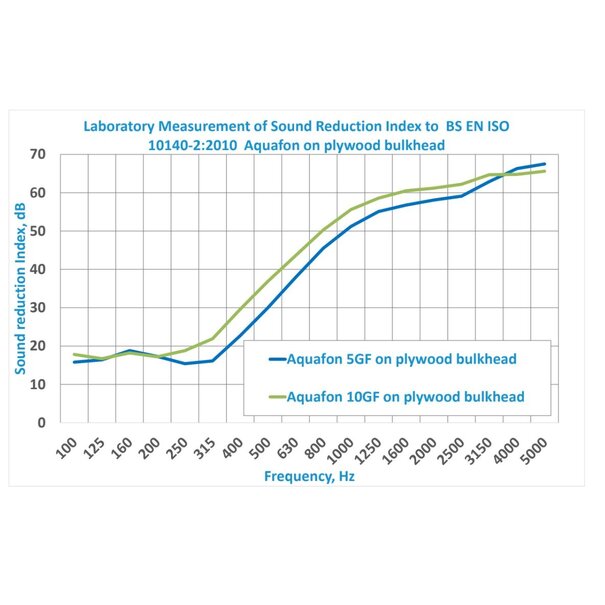

● Sound reduction 31 dB Rw according to BS EN ISO 717-1
● Fire classification Class 0 according to BS 476 Part 6 and 7
● Oxygen index greater than 80 according to ISO 4589-3

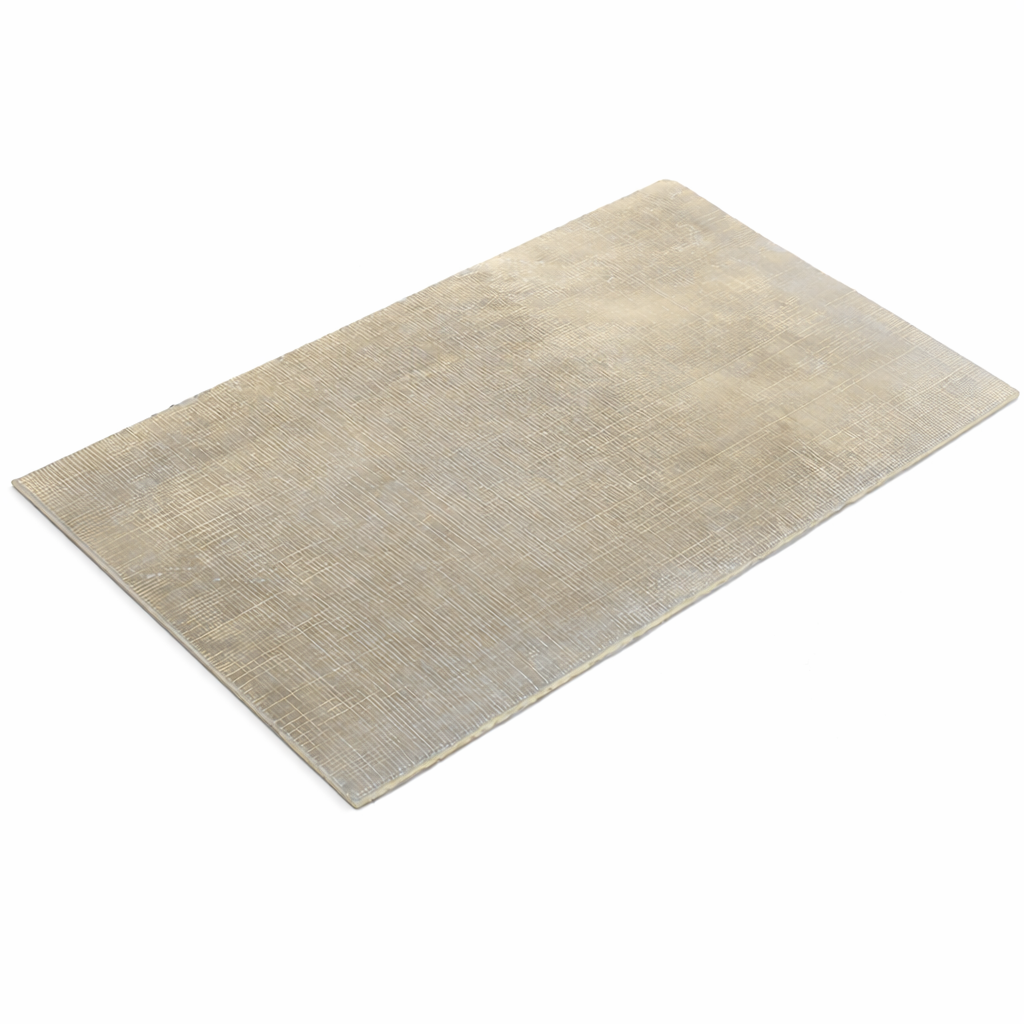

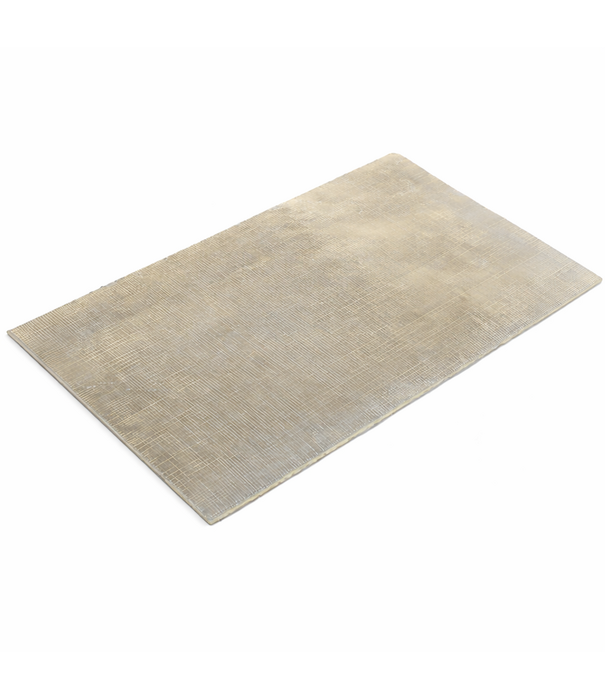

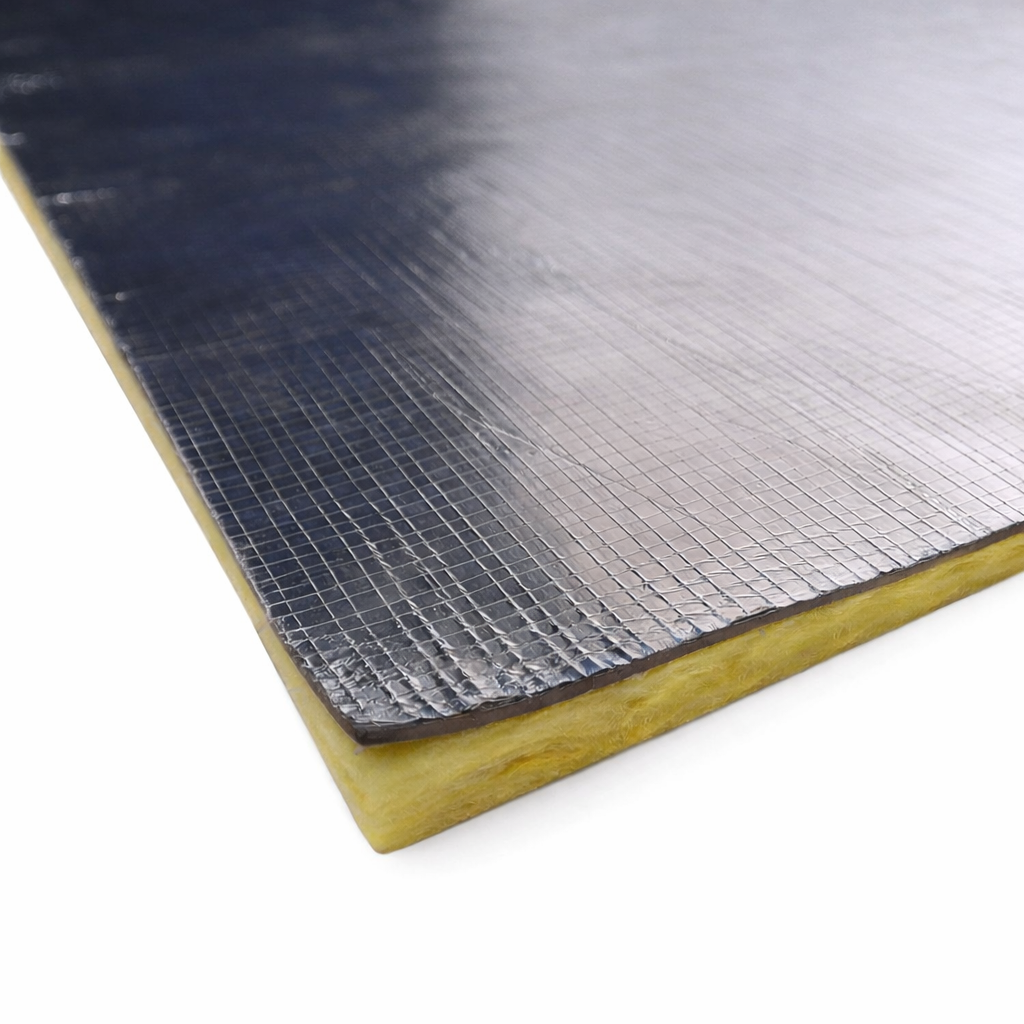

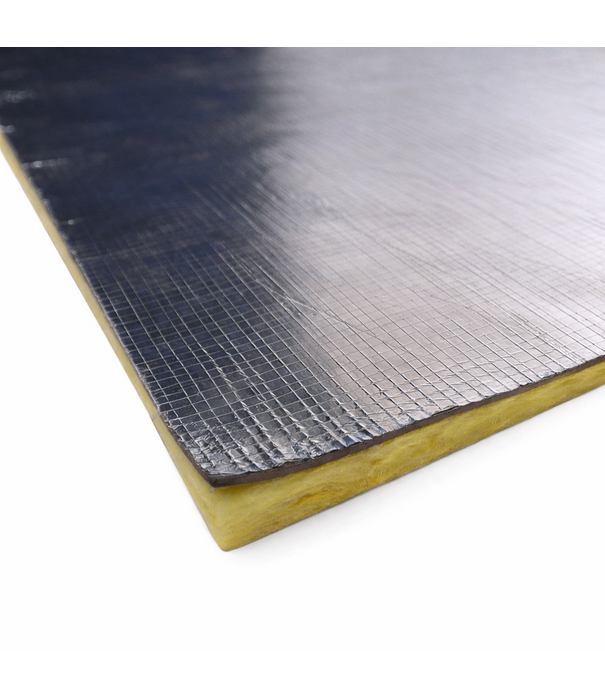

● Multilayer composite board with reinforced aluminium foil facing
● Suitable for recreational craft up to 24 metres in accordance with RCD 2013/52/EU and ISO 9094:2015

Key Features

● Effective reduction of noise transmission from engine rooms
● Suitable for recreational craft up to 24 metres
● Applicable in industrial engine rooms and generator enclosures
● Excellent fire performance with Class 0 classification
● High oxygen index for enhanced fire resistance
● Non fuel absorbent surface facing the engine
● Moisture resistant and resistant to oil and fuel

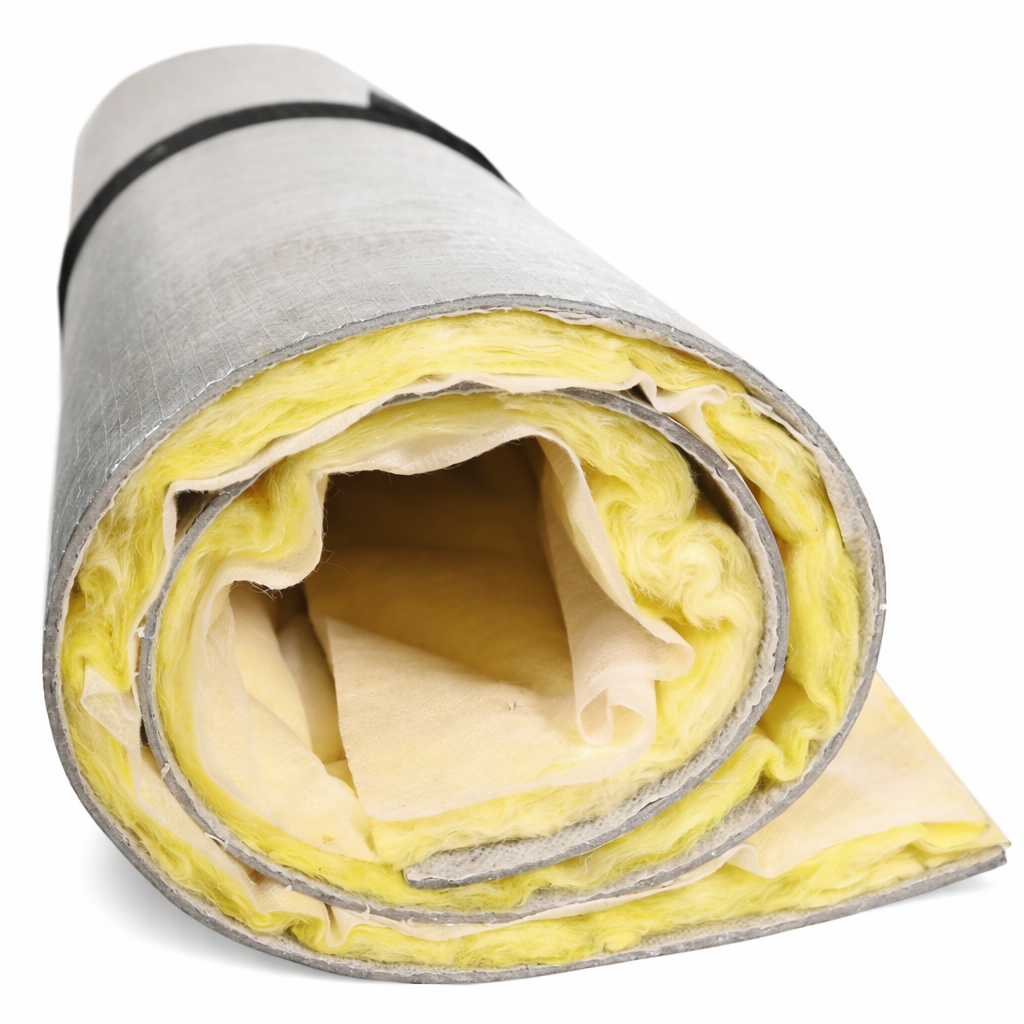

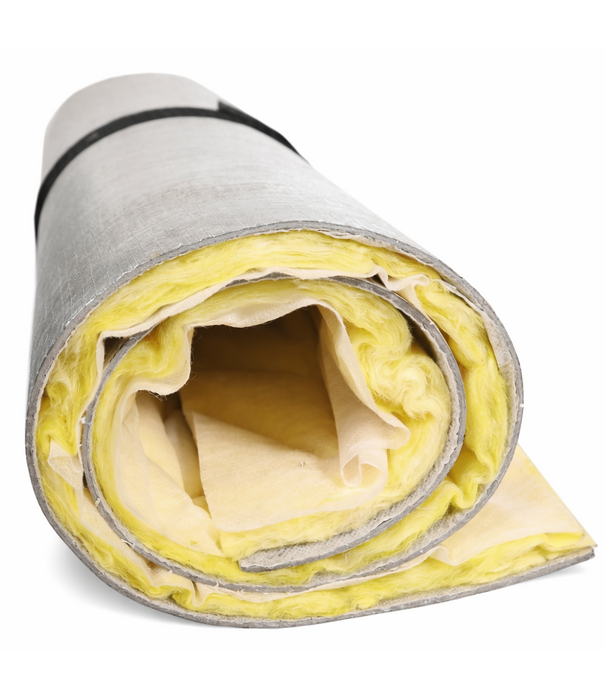

● Flexible material for easy installation
● Professional aluminium finish with vapour barrier function

Applications

● Lining of engine rooms in recreational craft up to 24 metres
● Sound insulation of bulkheads and walls in motor rooms
● Industrial engine rooms and technical installations
● Noise reduction in generator enclosures
● External lining of ducts, tanks and pipework

Installation Instructions

● Measure the surface accurately and mark cutting lines
● Cut the board to size using a sharp knife
● Position the board against the bulkhead or surface
● Secure with supplied insulation pins approx. 100 mm from the edge
● Press the board onto the pins and apply retaining clips
● Bend fixing pins over and trim excess metal
● Cover fixing points with aluminium foil tape
● Seal all exposed edges and joints completely with foil tape

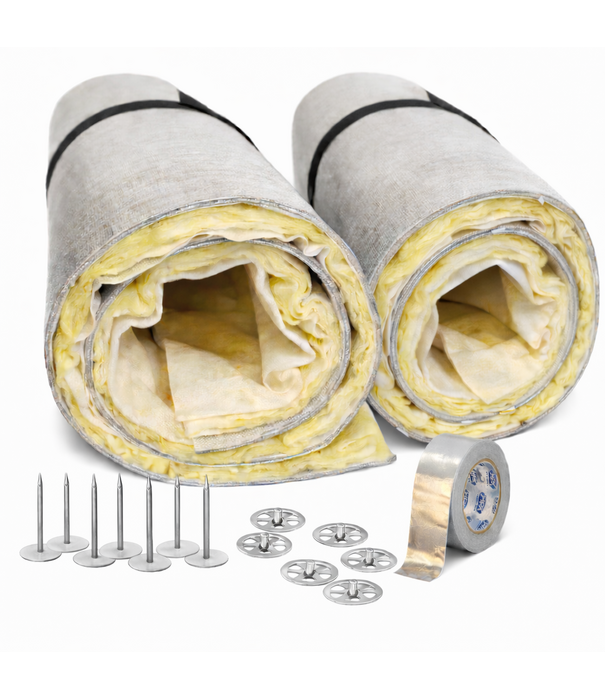

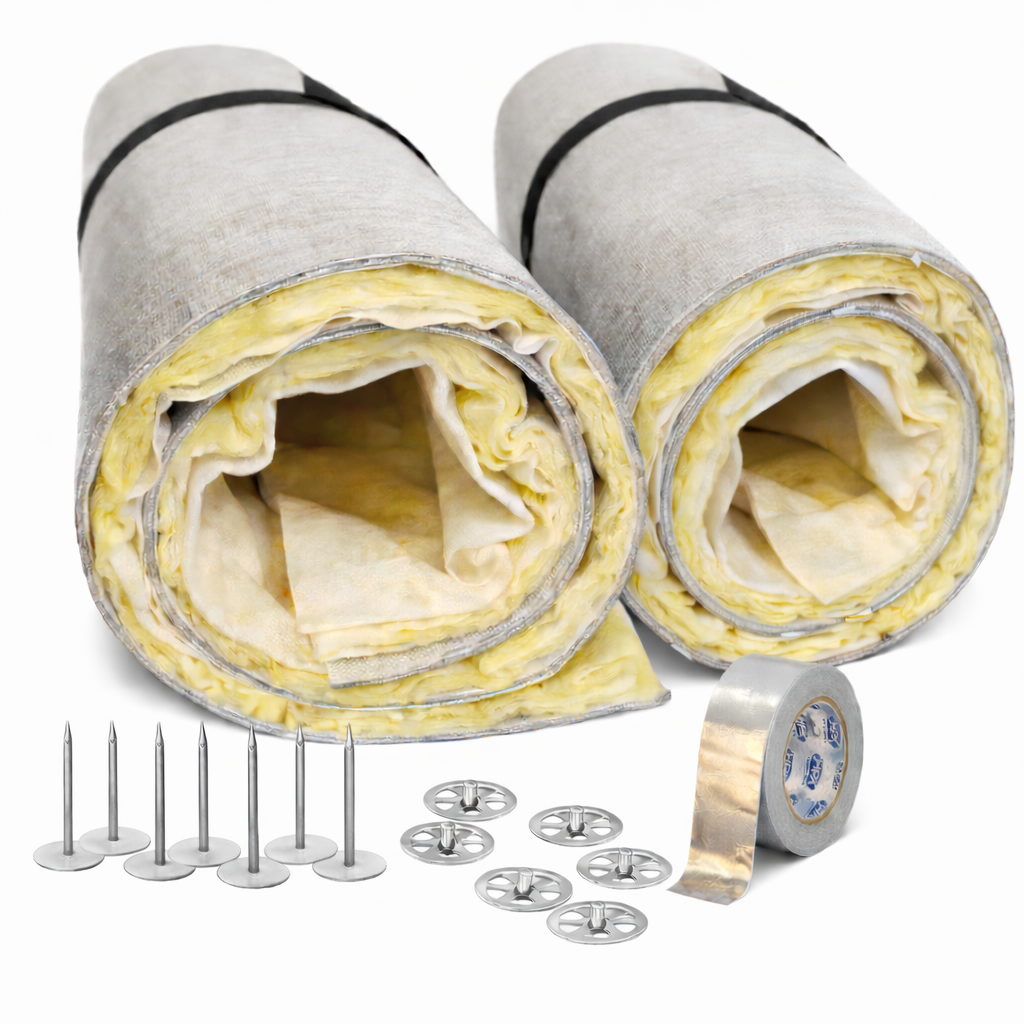

Box Contents

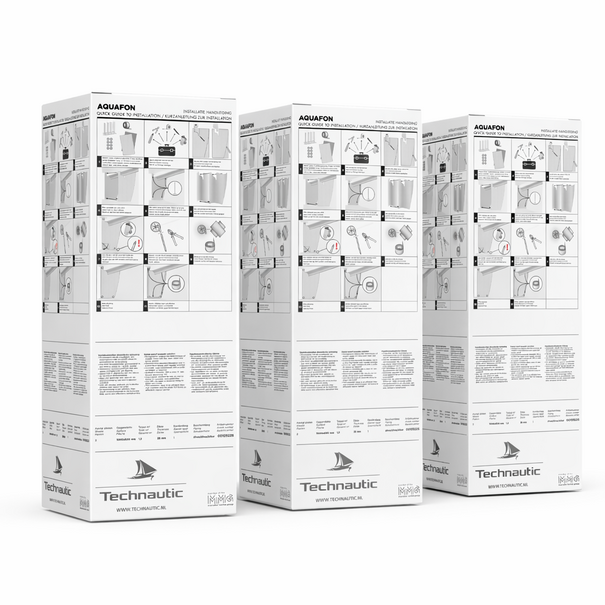

● Box containing 2 boards each 1000 x 600 mm
● 8 self adhesive insulation pins
● 8 retaining clips
● 1 roll of aluminium tape 50 mm wide

Documents and Downloads

● Installation instructions
● Information sheet
● Technical Datasheet
