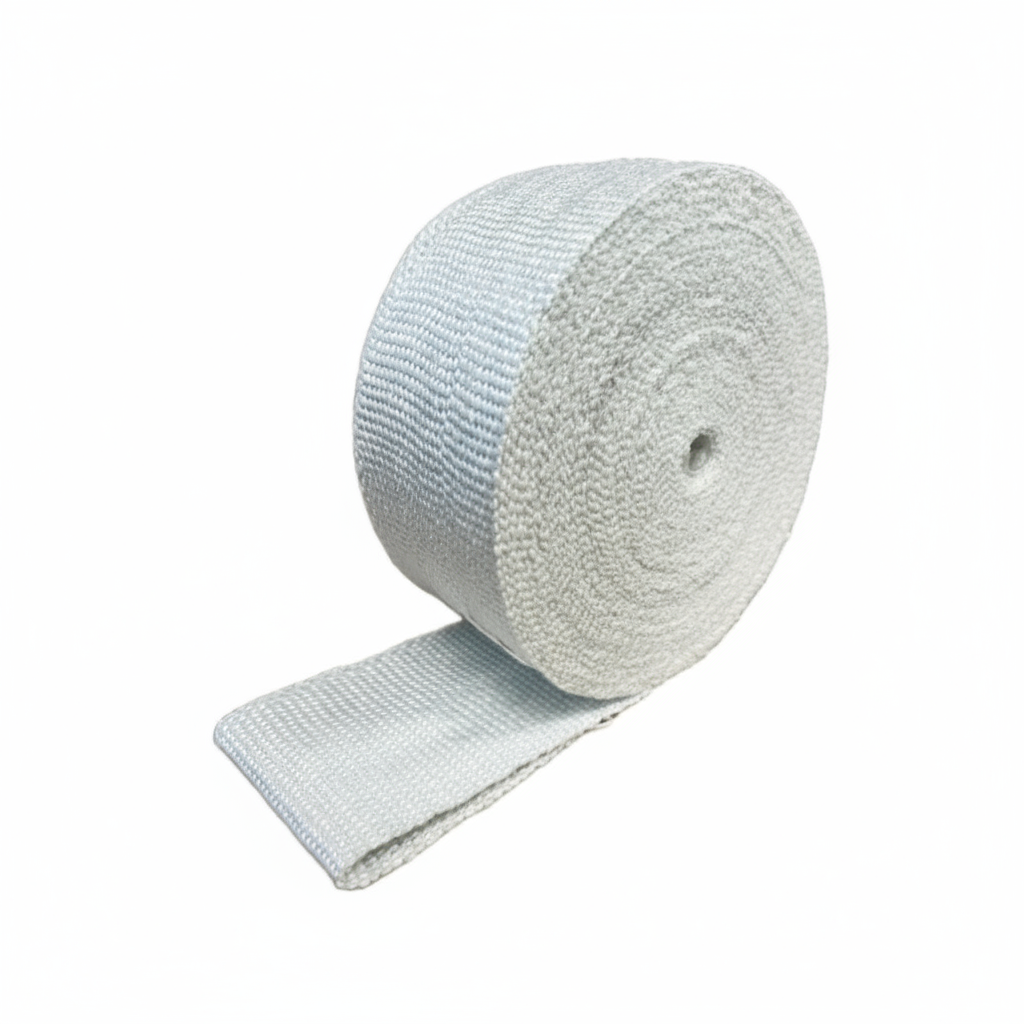

550 °C | Ceramic Exhaust Wrap - Fiberglass reinforced - 100 x 2mm x 50m

This ceramic exhaust wrap is designed for thermal insulation of exhaust systems and industrial equipment operating at high temperatures. It combines ceramic yarn with a fiberglass core: the ceramic layer ensures excellent heat insulation, while the fiberglass provides mechanical strength. This creates a durable and flexible solution for demanding thermal applications.

Product specifications

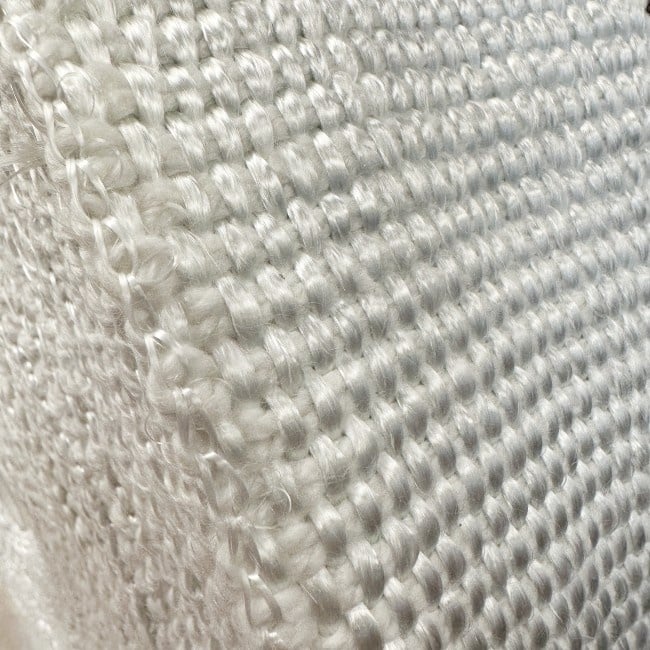

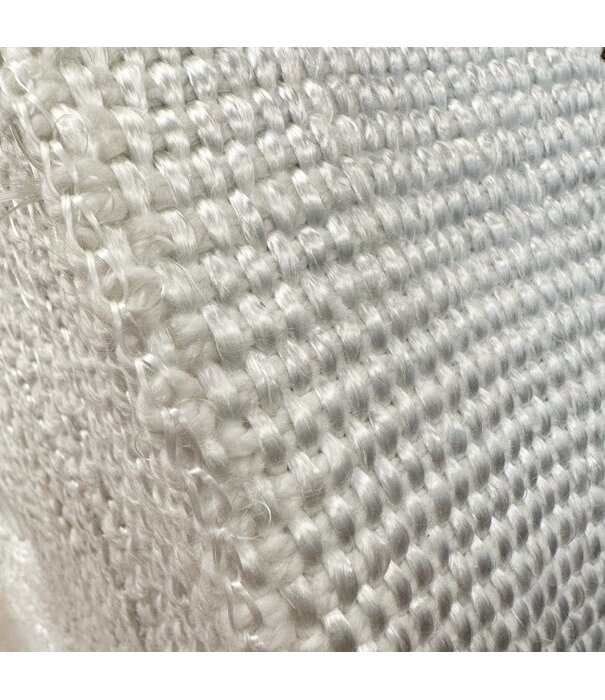

● Material: fiberglass core wrapped with ceramic yarn
● Ceramic fiber content: approximately 50%
● Temperature resistance: up to 550 °C
● Thermal conductivity: 0.10 – 0.25 W/(m·K) at 500 °C
● Flammability rating: VW-1
● Aluminum oxide content: 20–80%
● Silicon dioxide content: 20–80%
● Contains approximately 15% organic fibers

Key features

● Reduces radiant heat from hot exhaust components
● Resistant to very high temperatures
● Lightweight with excellent insulation properties
● High mechanical strength due to fiberglass structure
● Easy to install without special tools
● Supplied without fastening materials

Applications

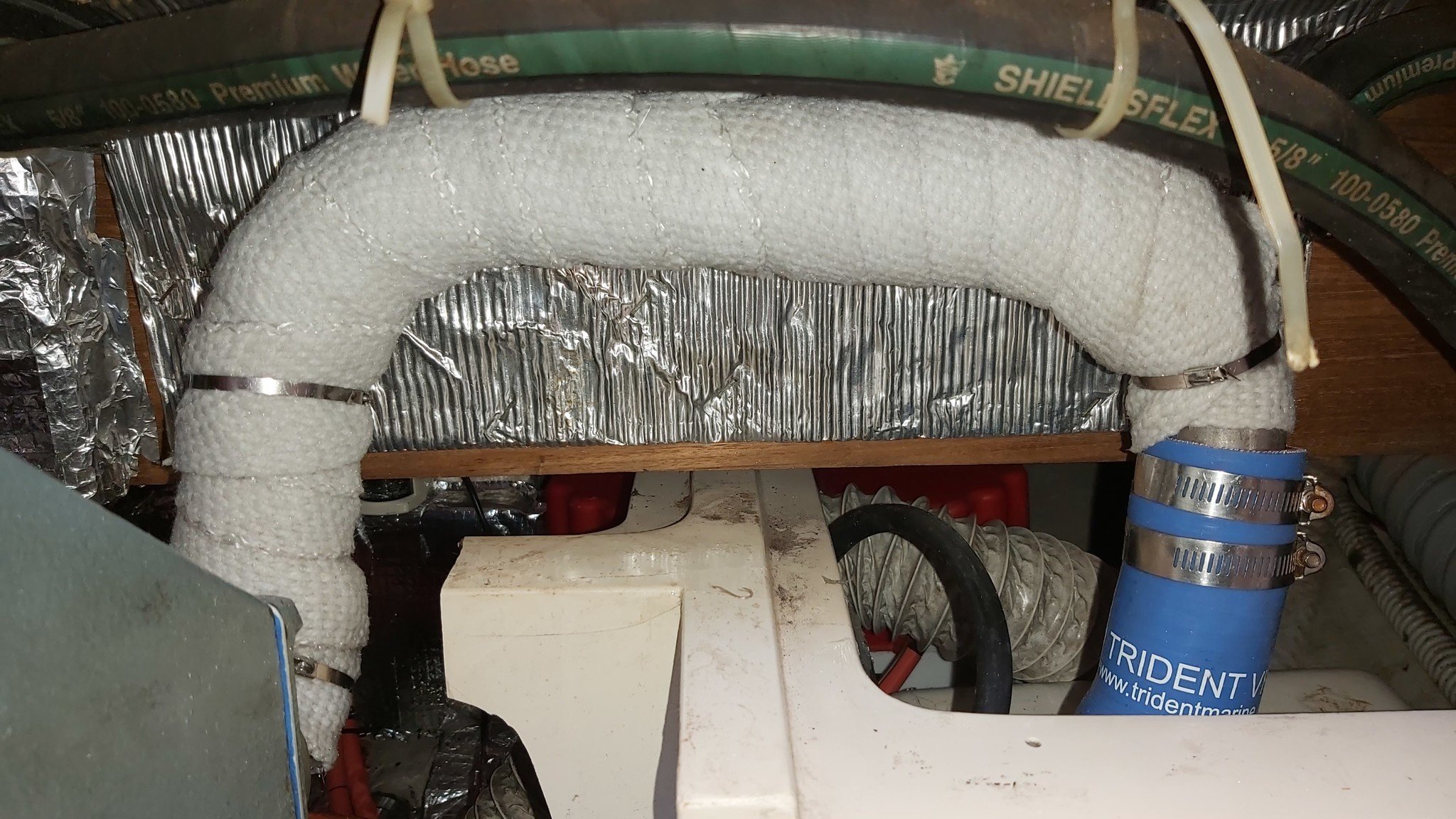

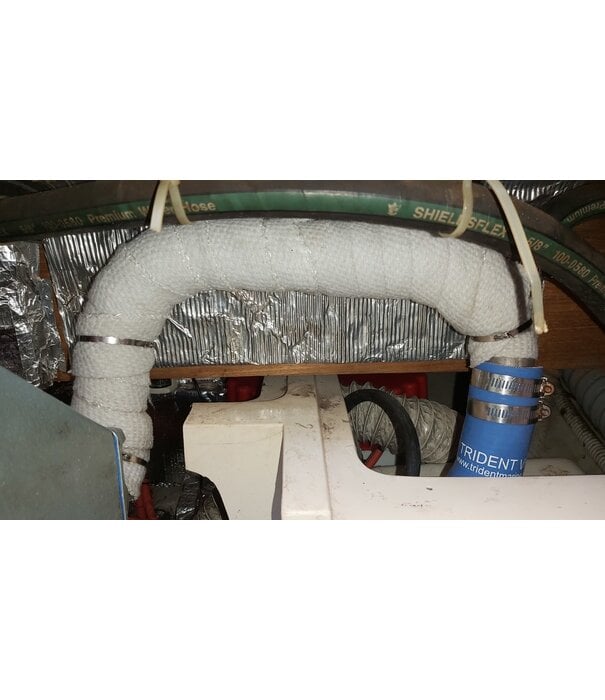

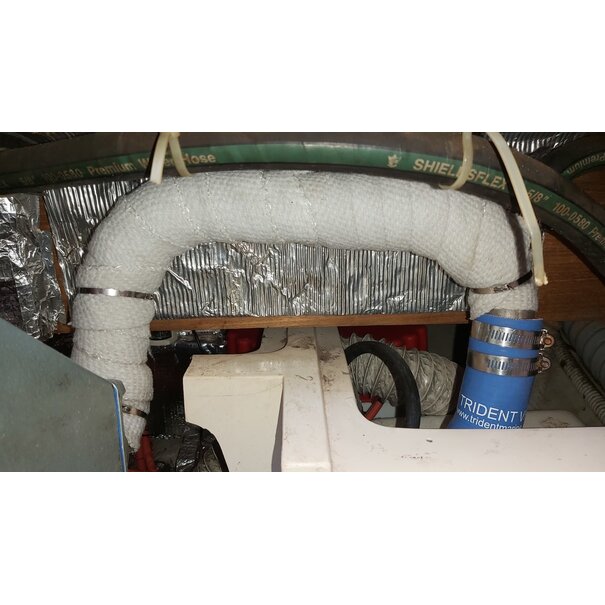

● Insulating exhaust systems in vehicles and industrial machinery
● Boiler insulation in technical installations
● Suitable for welding, metalworking, and smelting processes
● Applicable in aluminum and steel production
● Used in shipbuilding, power plants, and refineries
● Ideal for sealing and insulation in the chemical industry

Installation instructions

Note: due to the presence of organic fibers, the wrap may emit smoke or darken during the initial heating. This is normal and will fade over time.
● Ensure proper ventilation during installation and initial use
● Secure with stainless steel tie wraps (not included)
● Wrap tightly and evenly for optimal insulation
