100 x 50 cm | Heat Reflective Sheet Gold 400 °C

Heat Reflective Gold Foil – 100 x 50 cm | Reflects up to 95% Radiant Heat | Self-Adhesive

Summary:

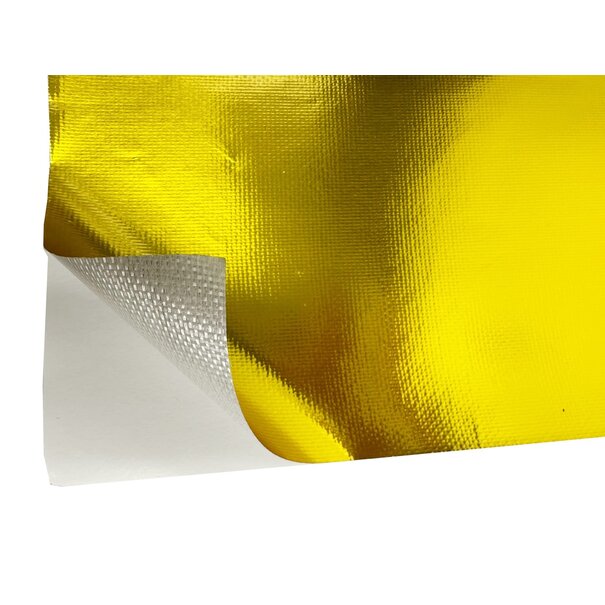

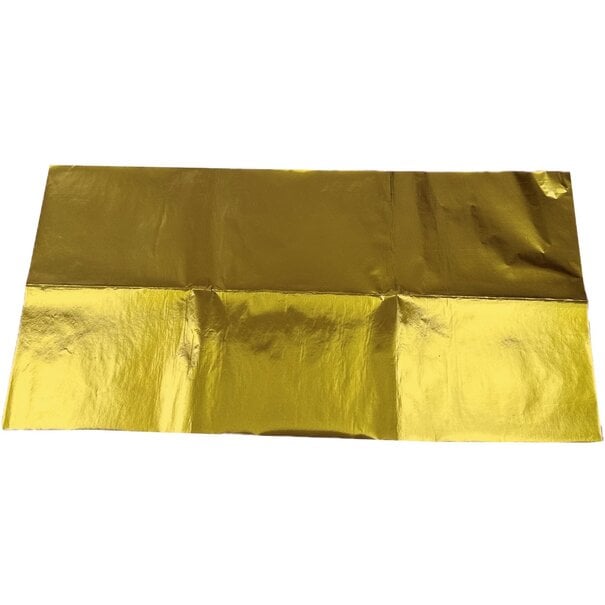

This premium heat-resistant foil features a gold-colored metallized polymer surface layered with fiberglass reinforcement and a high-temperature, pressure-sensitive adhesive. The foil reflects up to 95% of radiant heat, providing effective thermal protection for vulnerable components.

Ideal for use in engine bays, fuel tanks, bumpers, electronics, and even household appliances, the foil is UV-resistant, lightweight, and flexible—making it easy to apply to uneven or curved surfaces.

Technical Specifications

• Dimensions: 100 x 50 cm

• Construction: Metallized polymer with fiberglass backing

• Top layer: Gold reflective surface

• Adhesive: High-temp acrylic, pressure-sensitive

• Total thickness: Approx. 0.3 mm

• Heat reflectivity: Up to 95% of radiant heat

• Heat resistance:

  • Reflective side: up to 450 °C (radiant)

  • Adhesive side: up to 160 °C continuous

  • Short peaks: up to 230 °C

• UV-resistant: Yes

• Formable: Highly flexible, suitable for irregular surfaces

• Self-adhesive: Yes, with liner

• Color: Gold

Key Benefits

• High heat reflection: Keeps temperatures under control by deflecting radiant heat.

• Protects components: Ideal for shielding plastics, wiring, and electronics.

• Easy to apply: Lightweight and adhesive-backed for quick installation.

• Versatile: Suitable for automotive, industrial, and household applications.

• Durable: UV-resistant and designed for variable temperature environments.

Example Applications

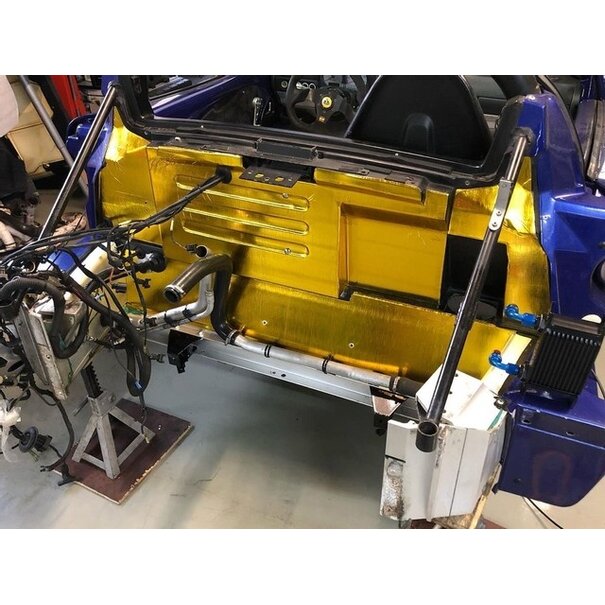

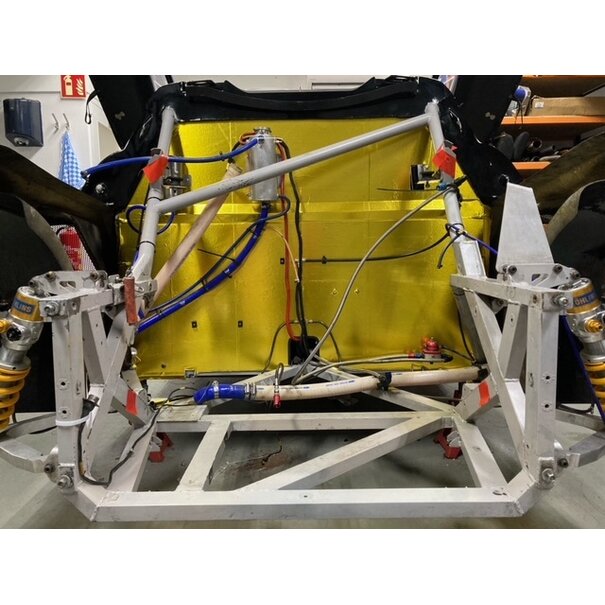

• Automotive:

  • Hood liners, intake ducts, firewall panels, fuel tanks.

  • Rear bumpers near exhaust outlets.

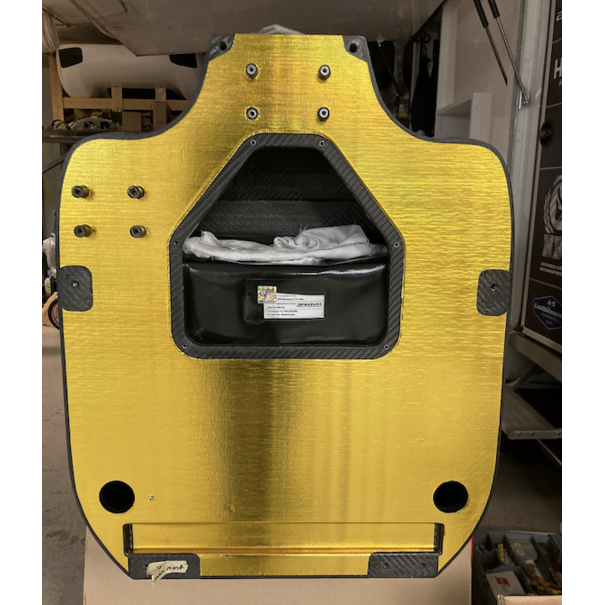

• Motorsport:

  • Heat shielding around intercoolers, wiring looms, ECUs.

• Industrial:

  • Machines, HVAC units, compressors, electrical boxes.

• Electronics:

  • Battery packs, control boxes, wiring harnesses.

• Household:

  • Oven sides, microwave shielding, behind stoves or cooktops.

Installation Notes

• Apply only to clean, dry, and grease-free surfaces.

• Not for direct contact with exhaust pipes or flame-exposed metal.

Packaging

• Contents: 1 sheet of 100 x 50 cm

More information about Heat-resistant gold foil? please contact us!
